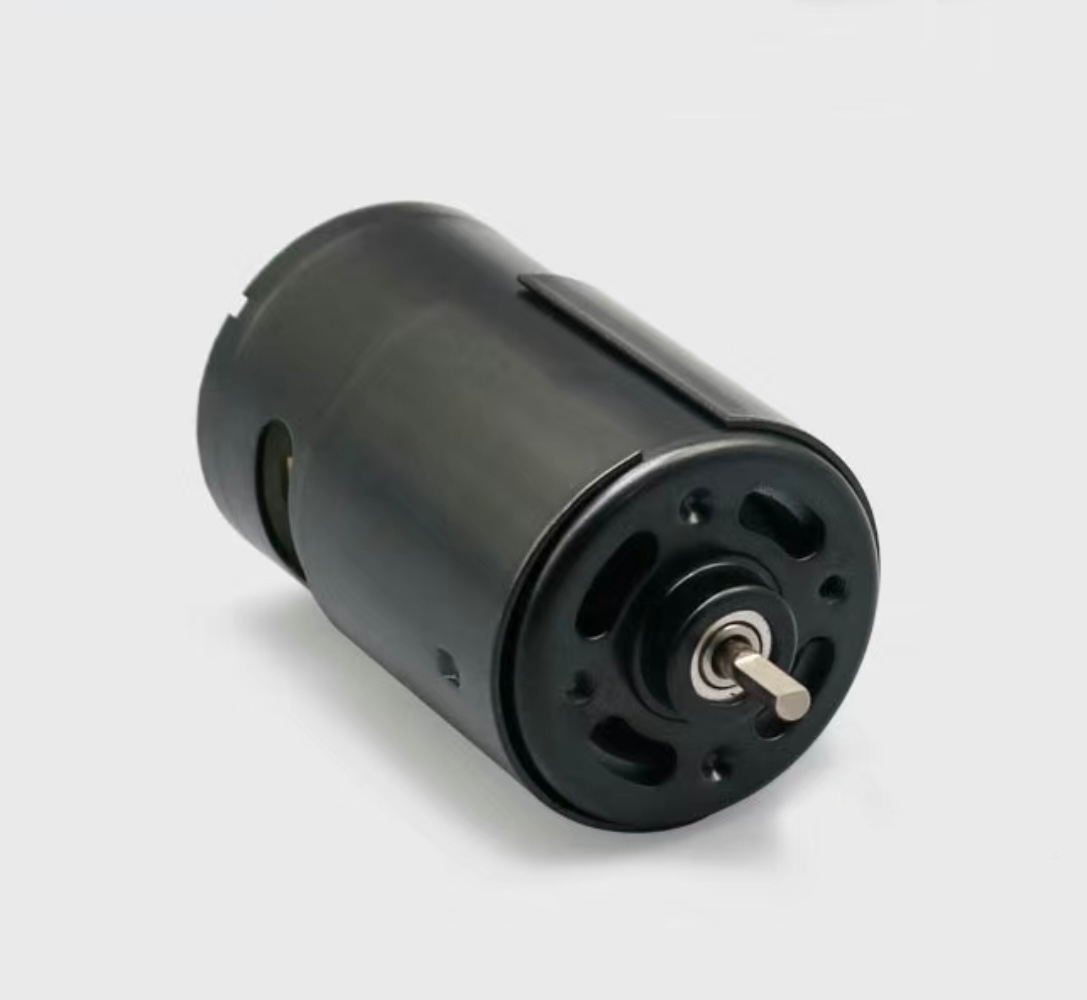

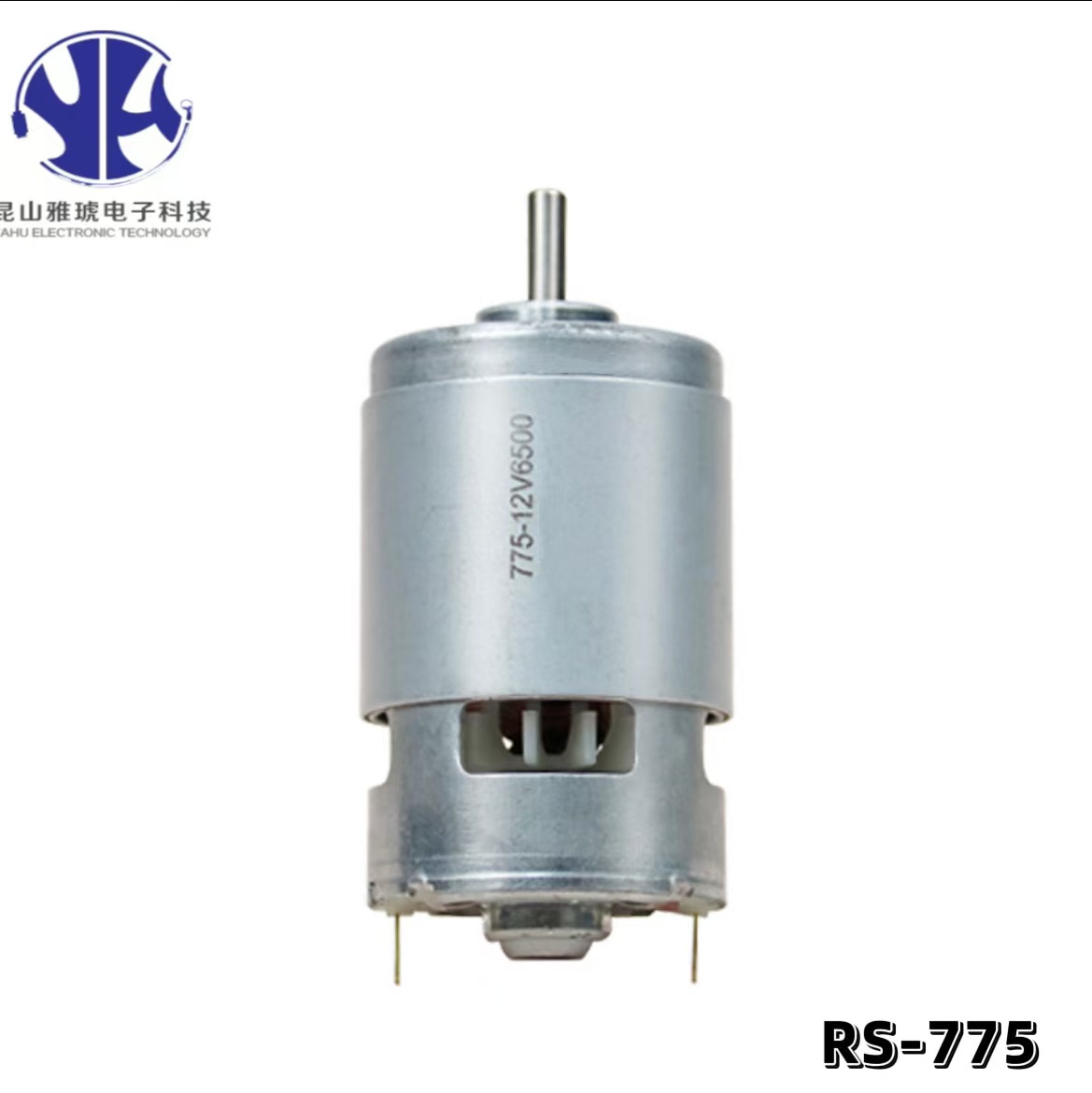

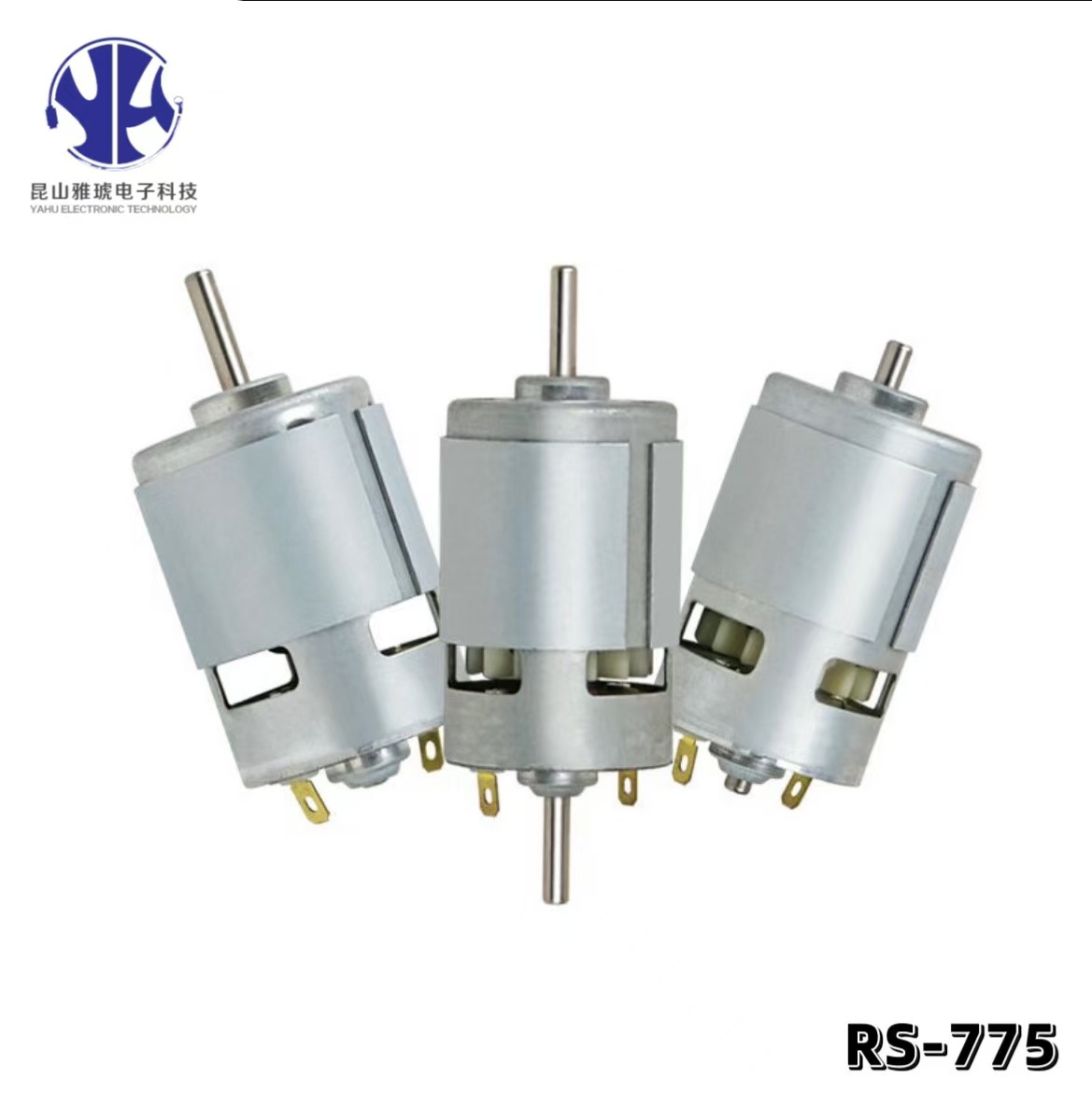

12V/24V/36V RS775 High-Speed Ball Bearing DC brushed for Robot& Industry .HIGHE Torque DC MICRO Motor.
Term details of cooperation
P/N
Application Capacity Made in Brand Cert MOQ Packing Lead time RS775
- Auto parts
- Robot
- Personal care
- Industrial tools
80,000-100,000pcs China YH CE ROHS
REACH
10PCS pallet customize for you
7-12 days
Specification for Doubel ball Bearing RS775 Motor
| Product Model | RS-775 Brushed DC Motor |
| Product size | diameter 42.2*66.5 excluding magnetic guard |
| Conventional output shaft size | 5mm *16 |
| Operating voltage | DC 36 V and below Body |
| material | galvanized high-strength casing, double ball bearings |
| Material of rotor | pure copper coil, high- performance silicon steel sheet |
| No load speed | supports customization |
| Customization range | 1500-16000rpm |
| Customized minimum order quantity | 200 units |
| Packaging quantity | 50units/box |
| Packaging material | foam inner box+carton packaging |
| Package size: | 370*250*280 |
| Single box weight: | 18.2 KG |

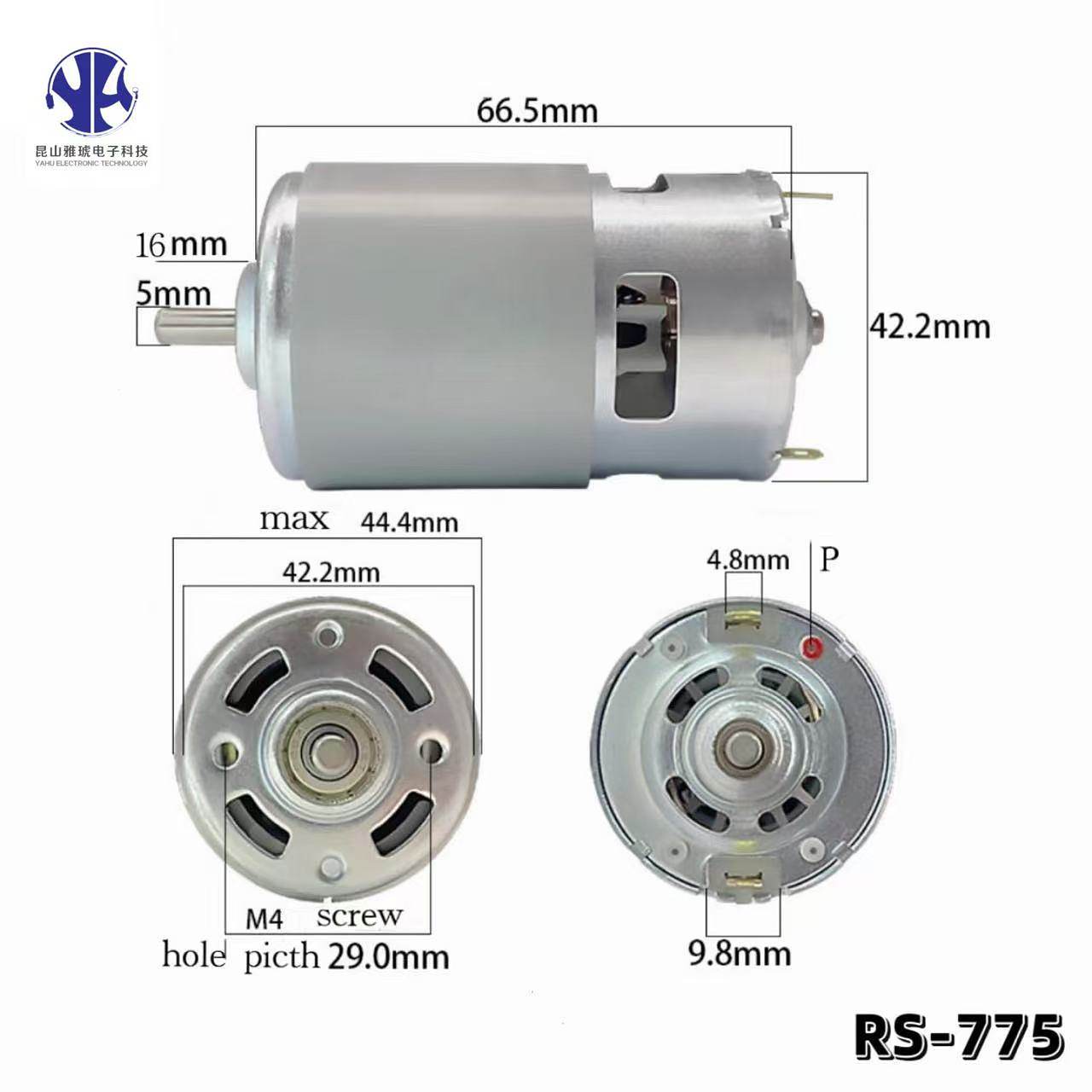

Drawing for Doubel ball Bearing RS775 Motor
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
