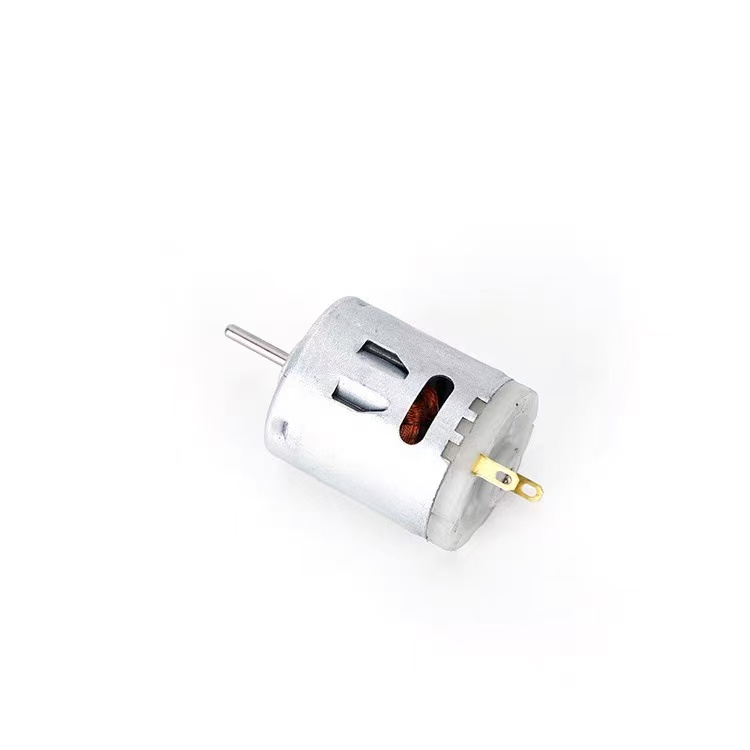

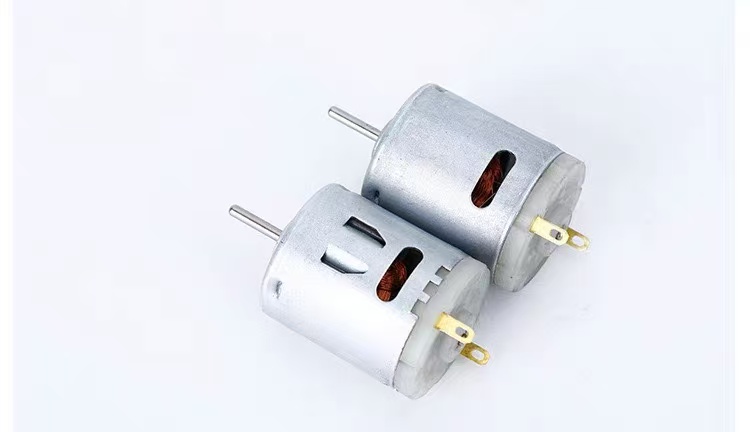

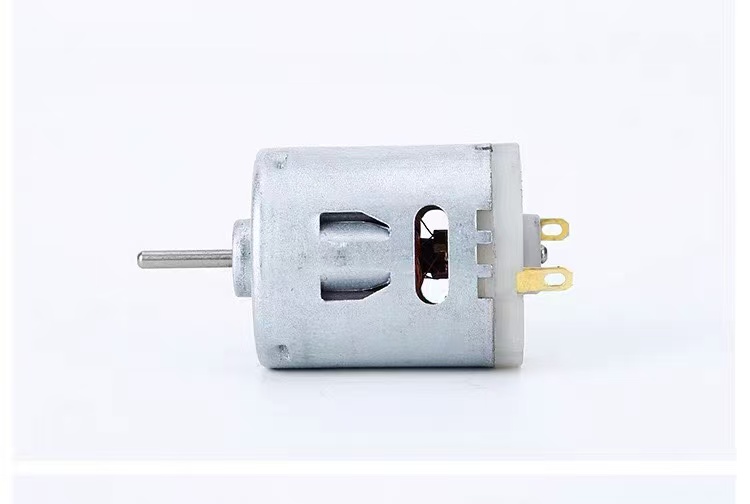

Rs385 DC Micro Motor
Brushed dc motor 30000RPM/35000RPM
Term details of cooperation
| P/N | Application | Capacity | Made in | Brand | Certi | MOQ | Packing | Lead time |
| RS385 |
|
80,000-100,000pcs | China | YH | CE
ROHS REACH |
10PCS | pallet
customize for you |
7-12 days |
Specification for oil Bearing RS385 dc motor
| Product Model | RS-365 Brushed DC Motor |
| Product size | diameter 27.5*57 excluding magnetic guard) |
| Conventional output shaft size | 2.3*13.5 |
| Operating voltage | DC 40V and below Body |
| material | galvanized high-strength casing, double ball bearings |
| Material of rotor | pure copper coil, high- performance silicon steel sheet |
| No load speed | supports customization |
| Customization range | 30000-35000rpm |
| Customized minimum order quantity | 1000units |
| Packaging quantity | 400units/box |
| Packaging material | foam inner box+carton packaging |
| Package size: | 350*260*170 |
| Single box weight: | 20 KG |

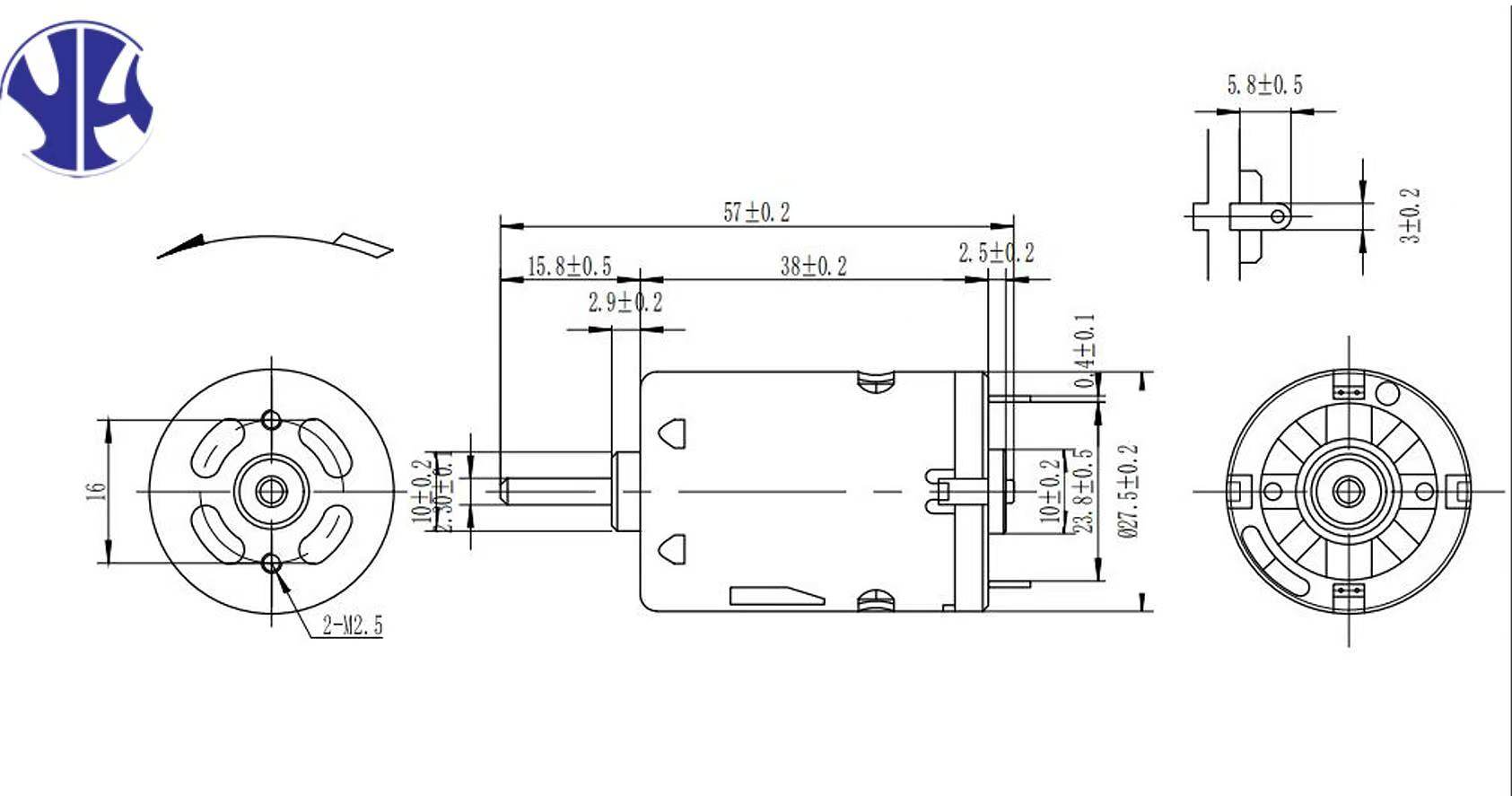

Drawing for oil Bearing RS385 Motor
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
