895 Dc Motor Double Ball Bearing 12v 24v Maximum Power 360w Brush Motors 6000rpm 12000rpm 20000rpm For Lawn Mower Scooter
Term details of cooperation
| P/N | Application | Capacity | Made in | Brand | Cert | MOQ | Packing | Lead time |
| RS895 |
|
80,000-100,000pcs | China | YH | CE
ROHS REACH |
10PCS | pallet
customize for you |
7-12 days |
Specification for Doubel ball Bearing RS895 Motor
| Product Model | RS-895 Brushed DC Motor |
| Product size | diameter 48*72excluding magnetic guard) |
| Conventional output shaft size | 5mm *16 |
| Operating voltage | DC 36 V and below Body |
| material | galvanized high-strength casing, double ball bearings |
| Material of rotor | pure copper coil, high- performance silicon steel sheet |
| No load speed | supports customization |
| Customization range | 1500-16000rpm |
| Customized minimum order quantity | 200 units |
| Packaging quantity | 40units/box |
| Packaging material | foam inner box+carton packaging |
| Package size: | 370*250*280 |
| Single box weight: | 20.5KG |

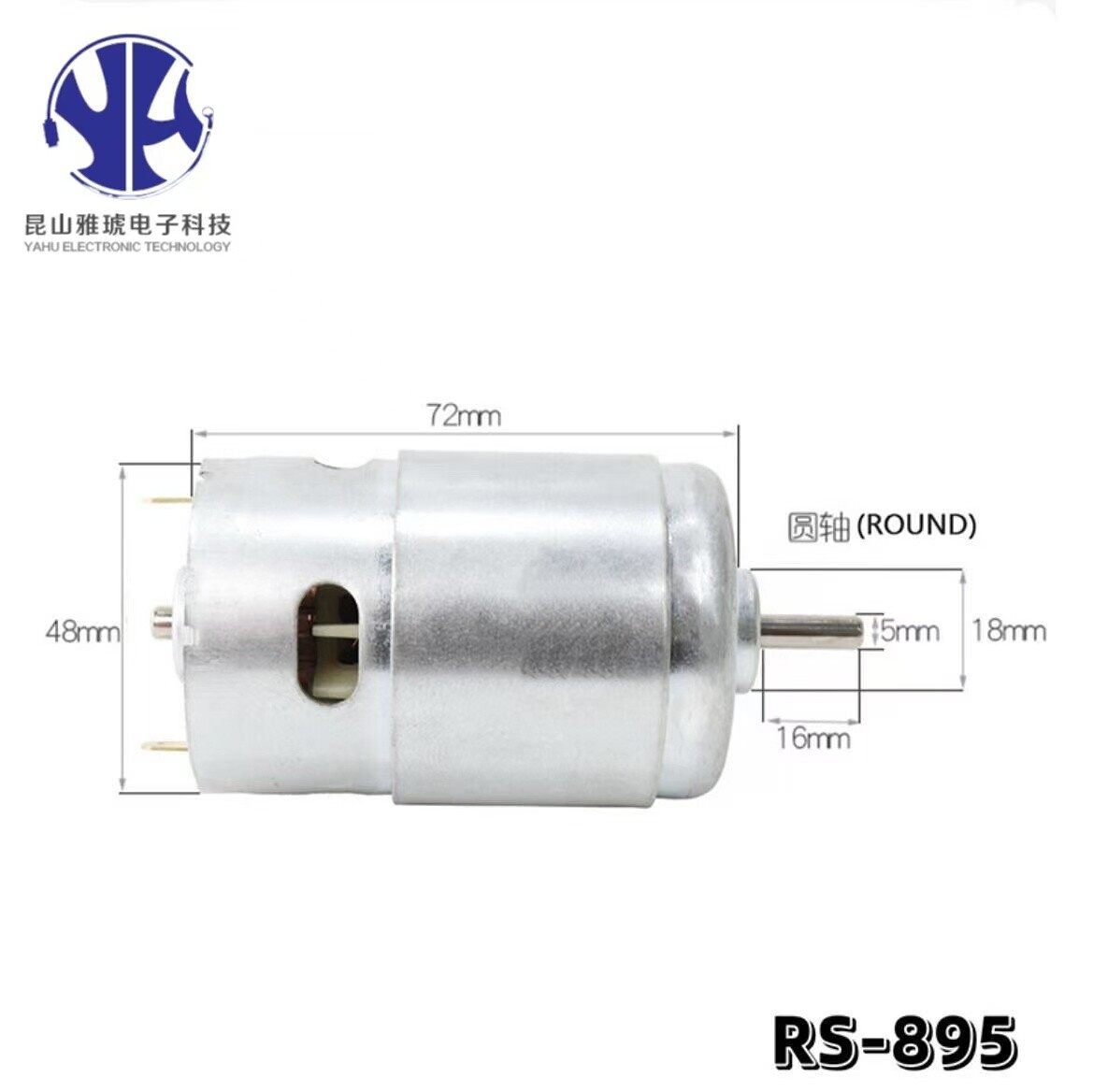

Drawing for Doubel ball Bearing RS895 Motor
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
