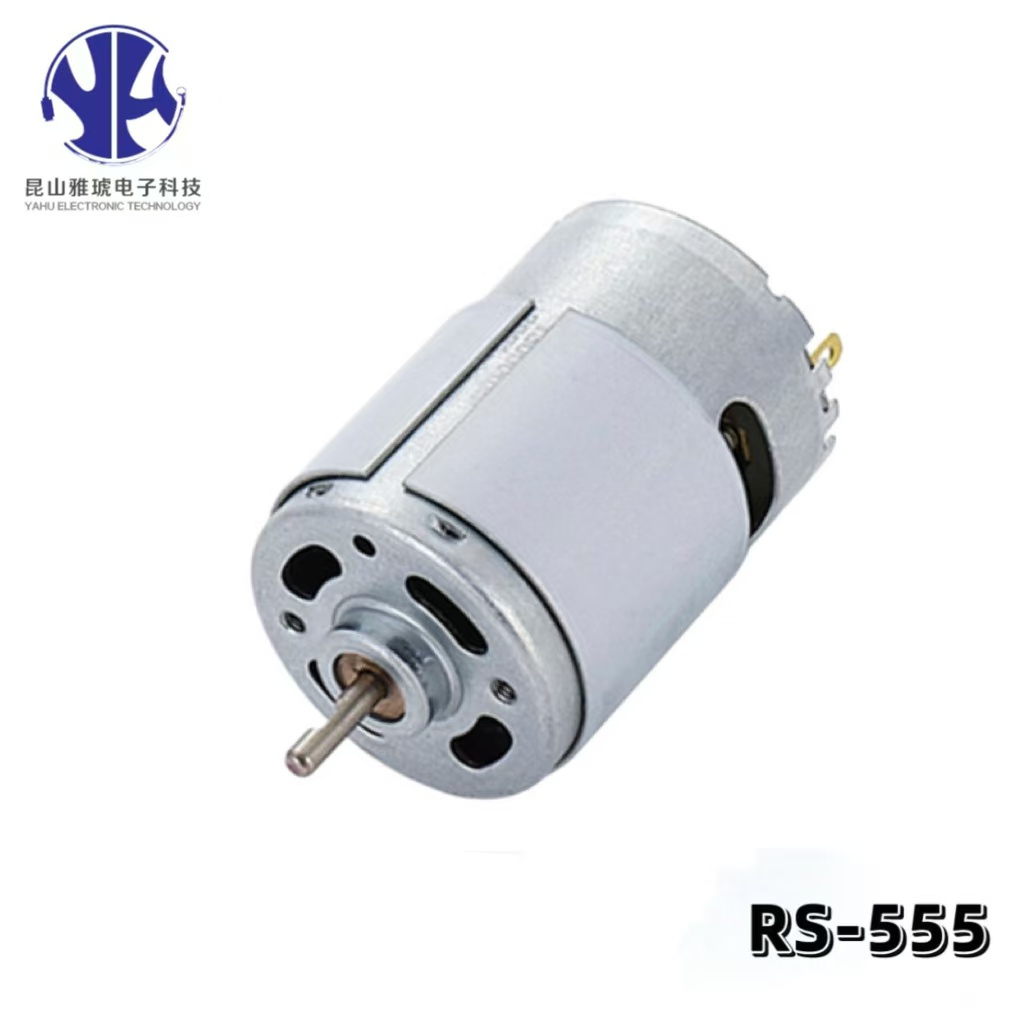

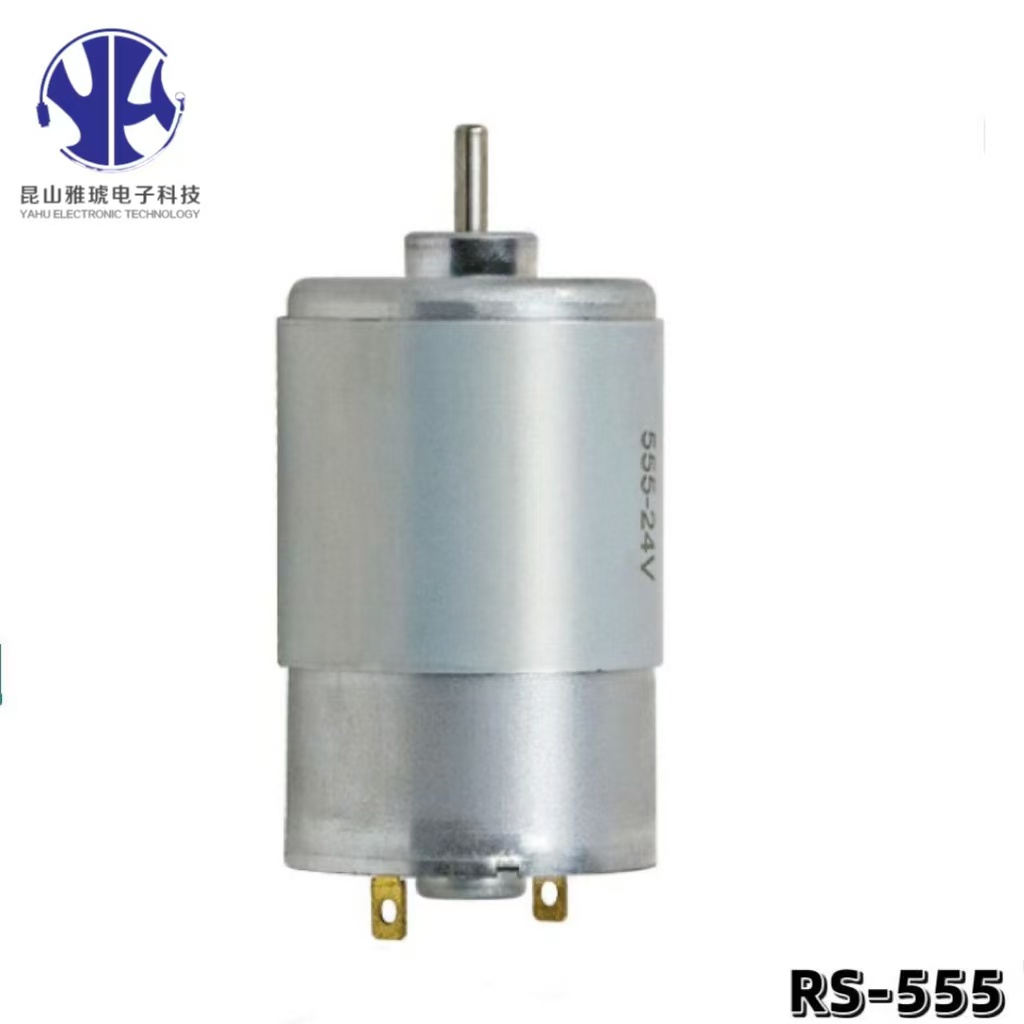

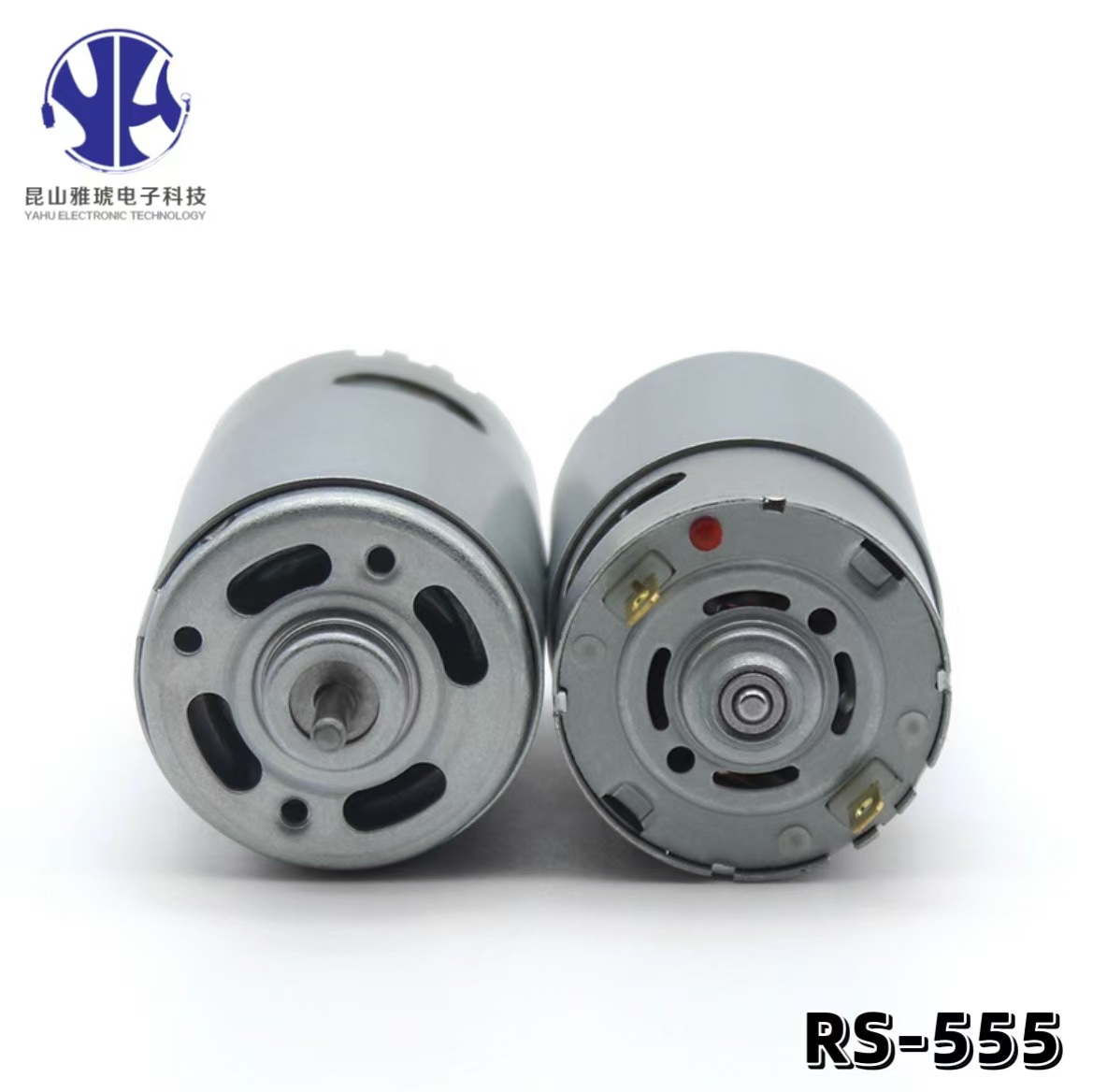

DC Micro Motor 555 12v-36v
Brushed dc motor 3000rpm/4500rpm/6000rpm/7500rpm/10000RPM
Term details of cooperation
| P/N | Application | Capacity | Made in | Brand | Certi | MOQ | Packing | Lead time |
| RS555 |
|
80,000-100,000pcs | China | YH | CE
ROHS REACH |
10PCS | pallet
customize for you |
7-12 days |
Specification for Doubel ball Bearing RS555 Motor
| Product Model | RS-555 Brushed DC Motor |
| Product size | diameter 35.9*57 excluding magnetic guard) |
| Conventional output shaft size | 3.175*9 |
| Operating voltage | DC 36 V and below Body |
| material | galvanized high-strength casing, double ball bearings |
| Material of rotor | pure copper coil, high- performance silicon steel sheet |
| No load speed | supports customization |
| Customization range | 2500-18000rpm |
| Customized minimum order quantity | 1000units |
| Packaging quantity | 100units/box |
| Packaging material | foam inner box+carton packaging |
| Package size: | 350*260*170 |
| Single box weight: | 22.8 KG |

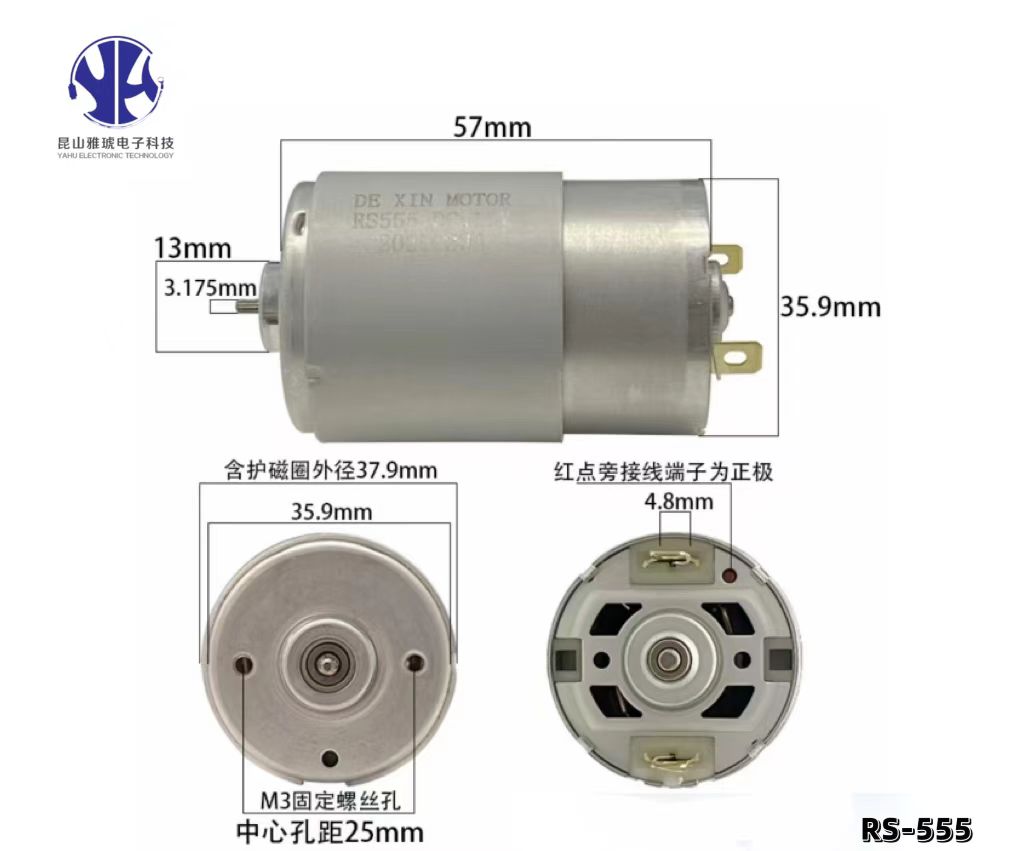

Drawing for Doubel ball Bearing RS555 Motor
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
