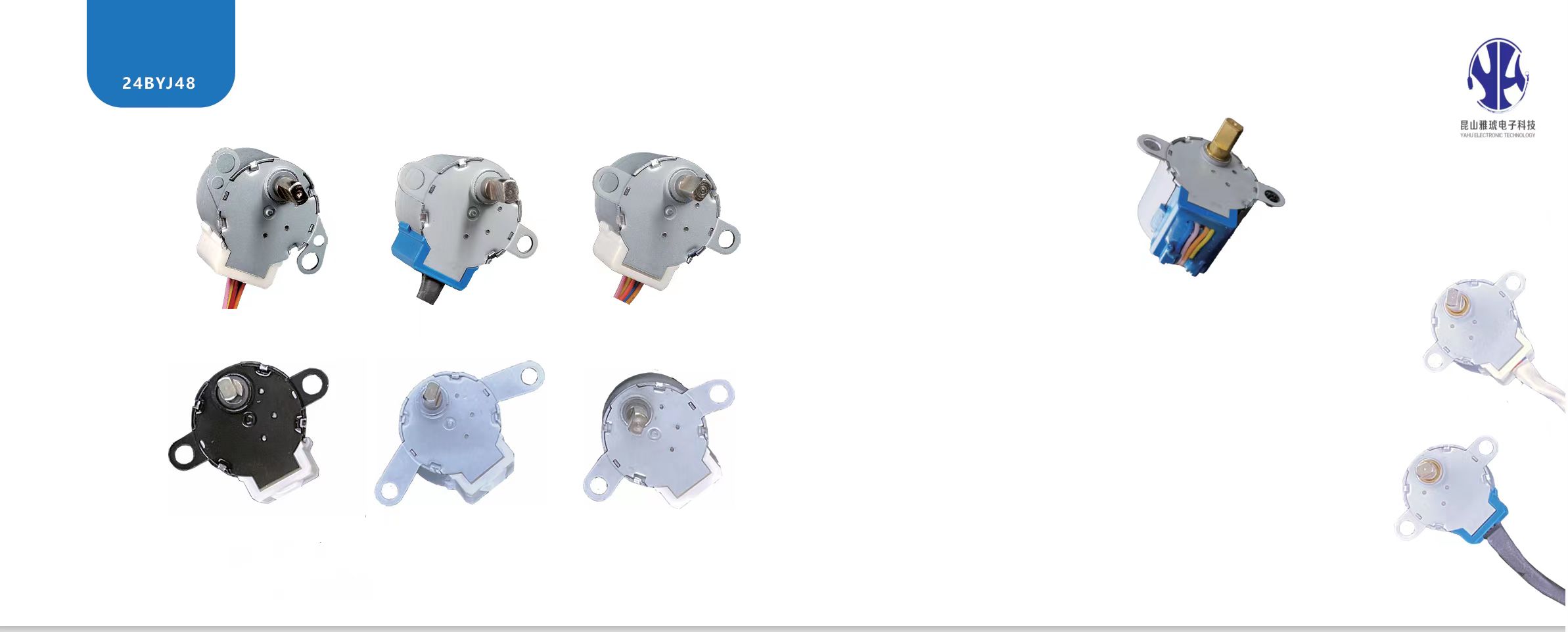

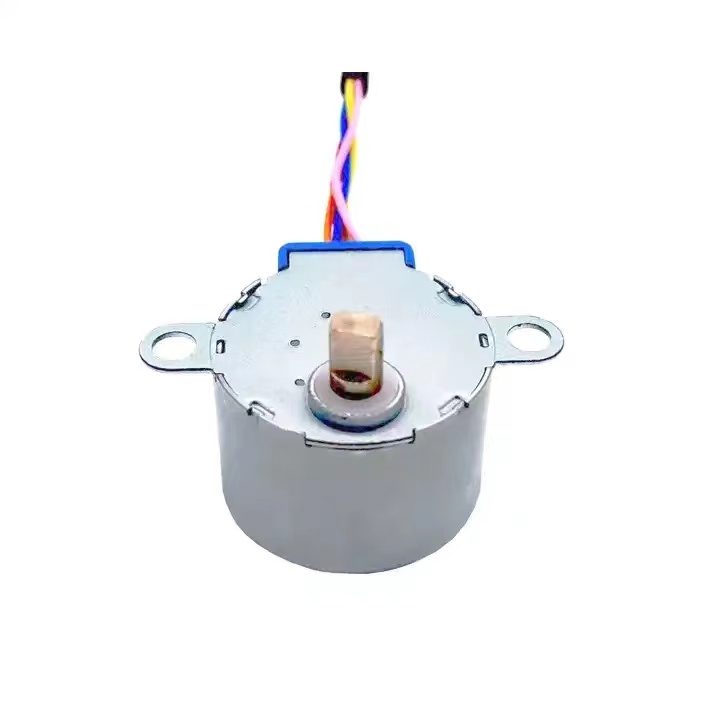

stepper motor 24BYJ48 DC 12V MICRO stepper motor for vacuum cleaner
Term details of cooperation
| P/N | Application | Capacity | Made in | Brand | Cert | MOQ | Packing | Lead time |
|
24BYJ48 |
|
80,000-100,000pcs | China | YH | CE
ROHS REACH |
10PCS | pallet
customize for you |
7-12 days |
Specification of 24BYJ46 Stepper Motor
| Number of phase | 4 |
| stepper Angle | 5.625°/64 |
| Reduction ratio | 1:64 |
| Rated voltage(phase) | 12v DC |
| Resistance (phase)@25℃ | 120Ω+/-7% |
| pull in torque(100pps) | ≥88.2mN.m |
| Cogging torque | >39.2mN.m |
| Noise | <40dB |
| Noload pull in | >800pps |
| No load pull out frequency | >1000pps |
| Duty | Continuous |
| Dielectric Strength | AC600V/1s/1mA |
| (DC500V)/Insulation | Above 50MΩ/Min |
| Insulation | E |
| Temperature Rise | Below 40K/Max |
| Friction Torque | 147-294mN.m |

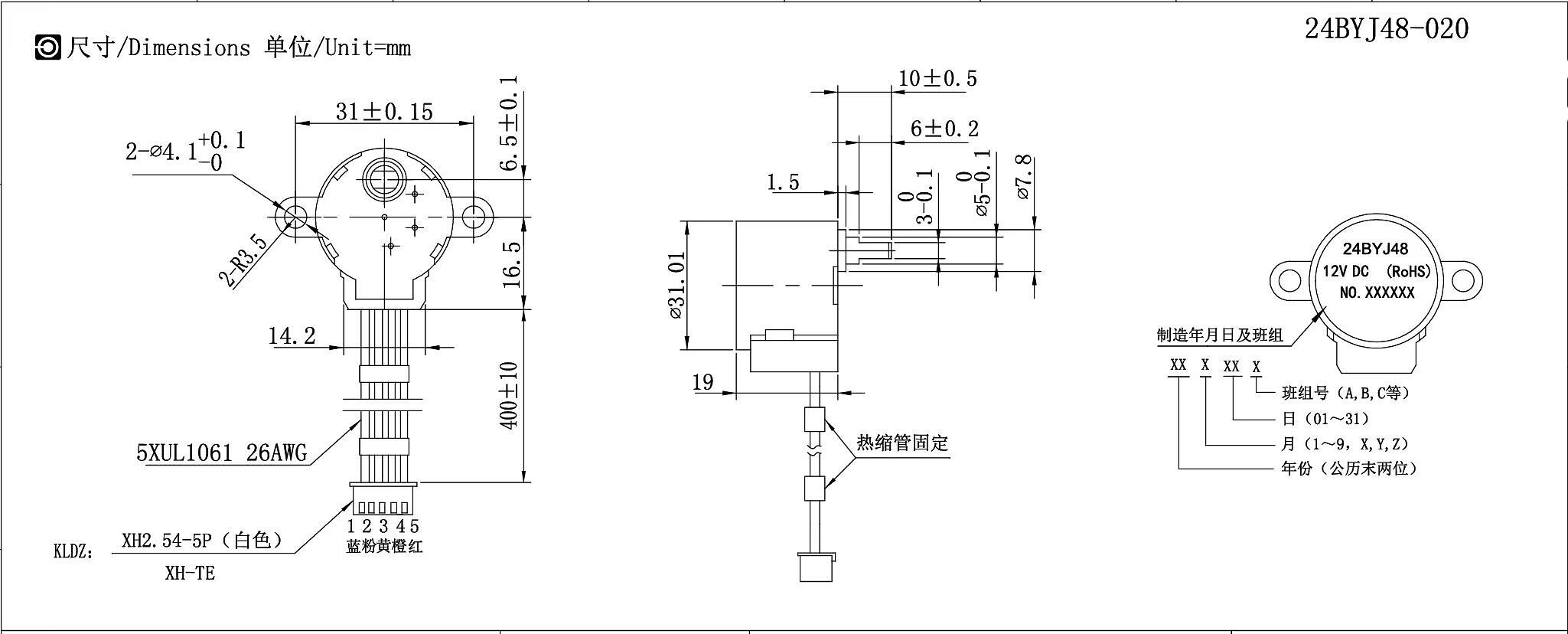

Drawing of MOTOR

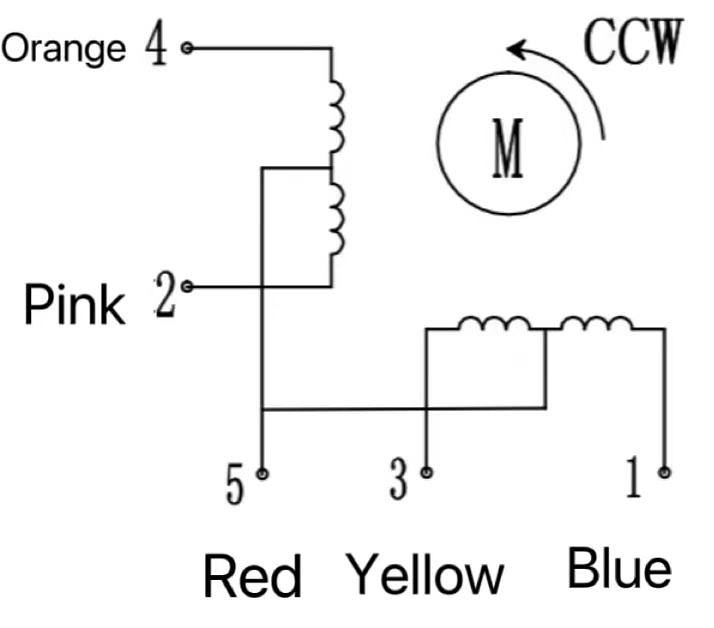

Wiring Diagram
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
