Detail of cooperation
| P/N | Application | capacity | Made in | Brand | cert | MOQ | packing | Lead time |
| 20BYJ46 | robot
fan Money detector |
80000-10000
pcs/day |
China | YH | CE
ROHS Reach |
10pcs | pallet | 7-12 days |

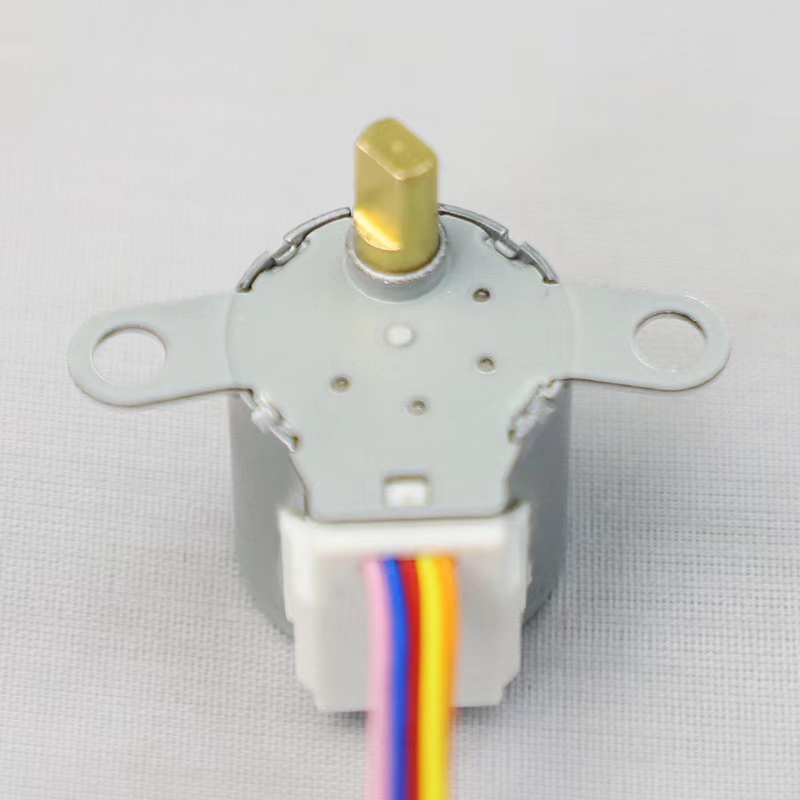

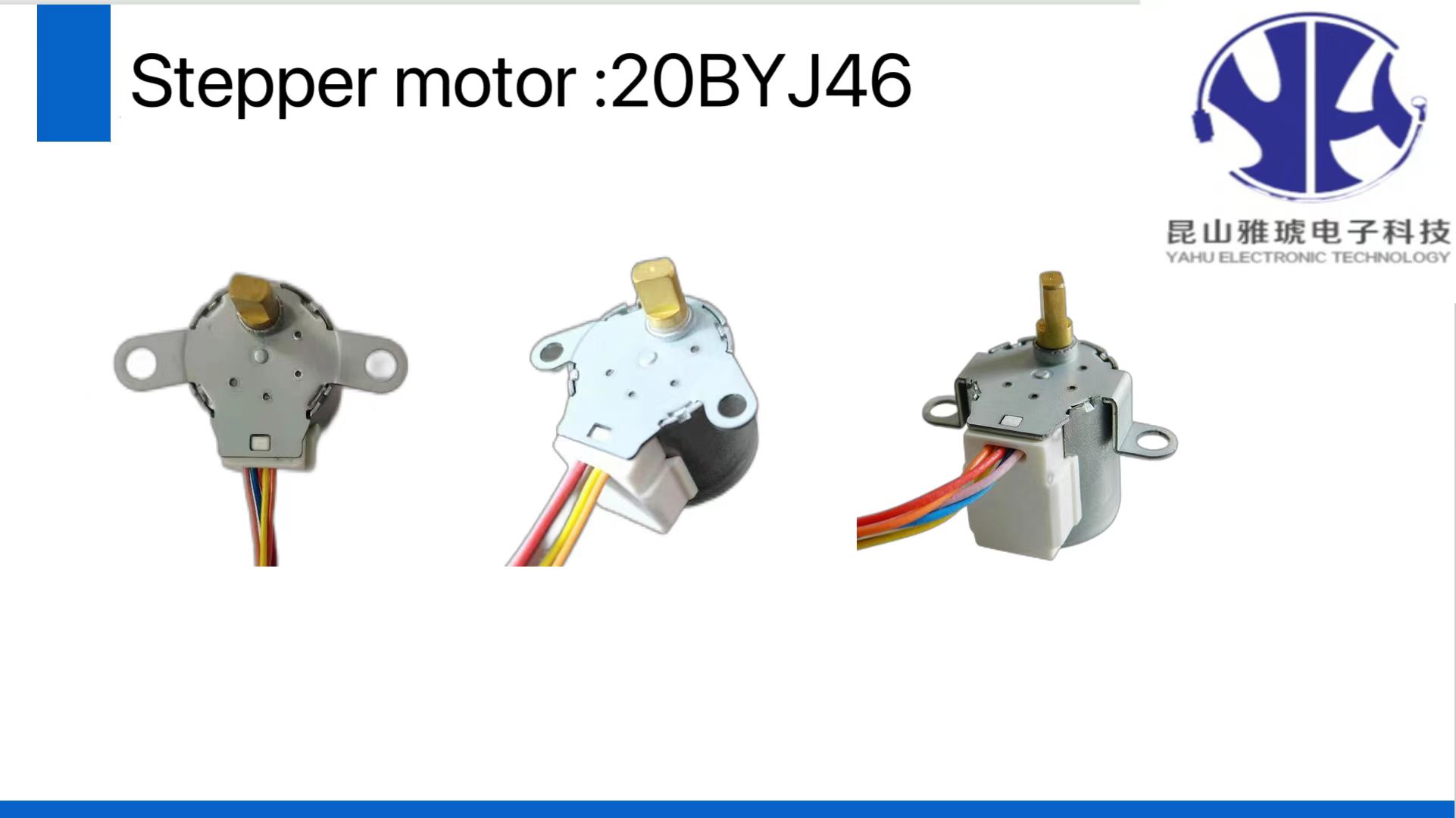

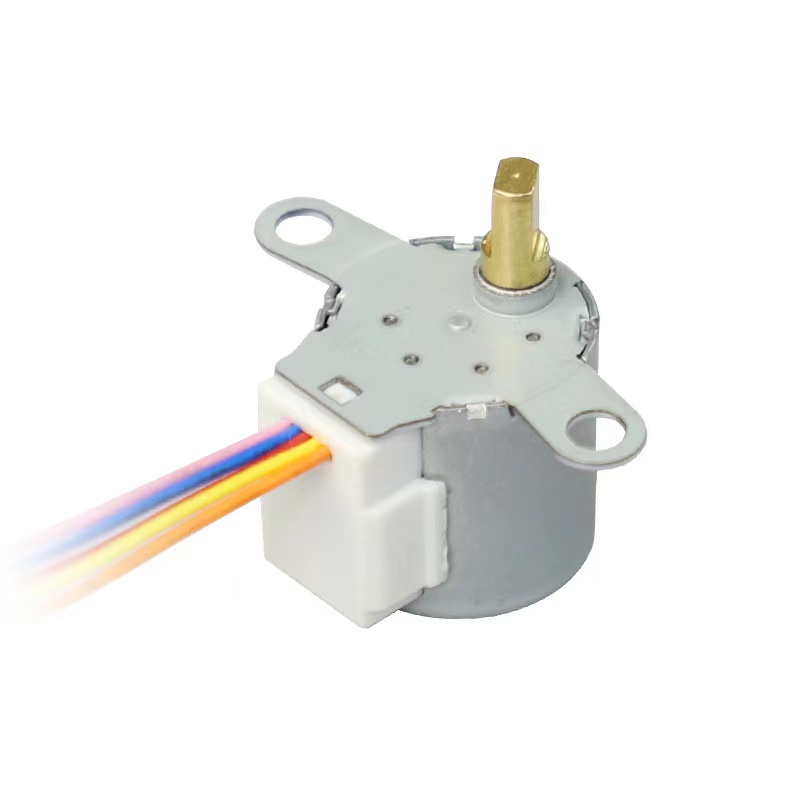

20BYJ46 Small Motor 35BYJ46 Stepper Motor, Up and Down Sweeping Motor, Air Conditioner Cabinet Motor, Swing Vane Motor, Wind Direction Motor Parts.
The advantage is fast response frequncy ,abrasion resistant and high and low temperature resistance .
specification
| Number of phase | 4 |
| Step Angel | 7.5°/85 |
| Reduction Ratio | 1：85 |
| Rated Voltage(phase) | 12V (DC) |
| Resistance (phase)@25℃ | 150Ω+/-7% |
| （100pps)/pull in torque | ≥49mN.m |
| cogging torque | ≥29.4mN.m |
| Noise | ≤40dB |
| No load pull in frequency | ≥350PPS |
| No load pull out frequency | ≥400PPS |
| Duty | continuous |
| Dielectric Strength | AC600V/1S/1mA |
| (DC 500V)/Insulation Resistance | Above 100MΩ/Min |
| (UL)/Insulation class | E |
| Temprature rise | Below 40k/Max |
| Friction Torque | / |
| storage Ambient temperature | -5℃-35℃ |
| storage Ambient Humidity | ＜75%RH |

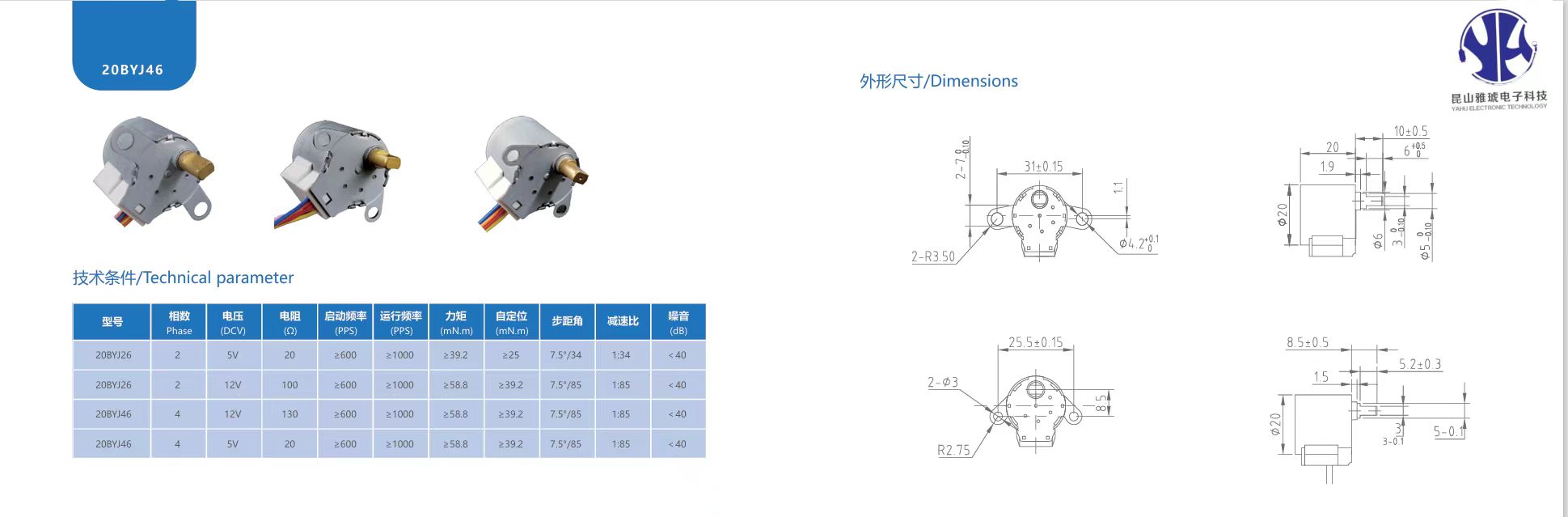

Drawing of 20BYJ46 motor

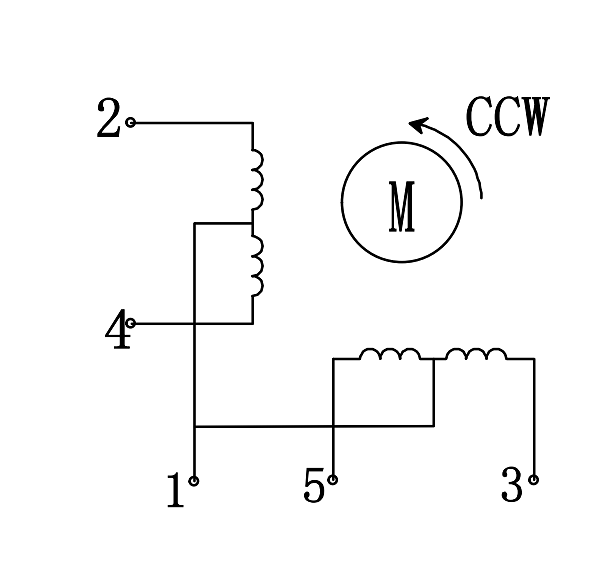

Wiring Diagram
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
