Terms of cooperation
| P/N | Application | Capacity | Made in | Brand | Cert | MOQ | Packing | Lead time |
| 24GR370 |
|
80,000-100,000PCS/days | China | YH | CE
ROHS REACH |
10PCS | pallet | 7-12
days |
Specification
| Rated voltage (phase) | 12V(DC) |
| No load speed (RPM) | 3600+/-10% |
| No load current(mA) | ≤80 |
| Load speed (RPM) | 180+/-10% |
| Load current (A) | ≤150 |
| Stall current(A) | / |
| Direction(CW/CCW) | CCW |
| Noise (dB)L=300MM | ≤65 |
| Driving motor Model | 370 |
| Reduction ratio | 1:19 |

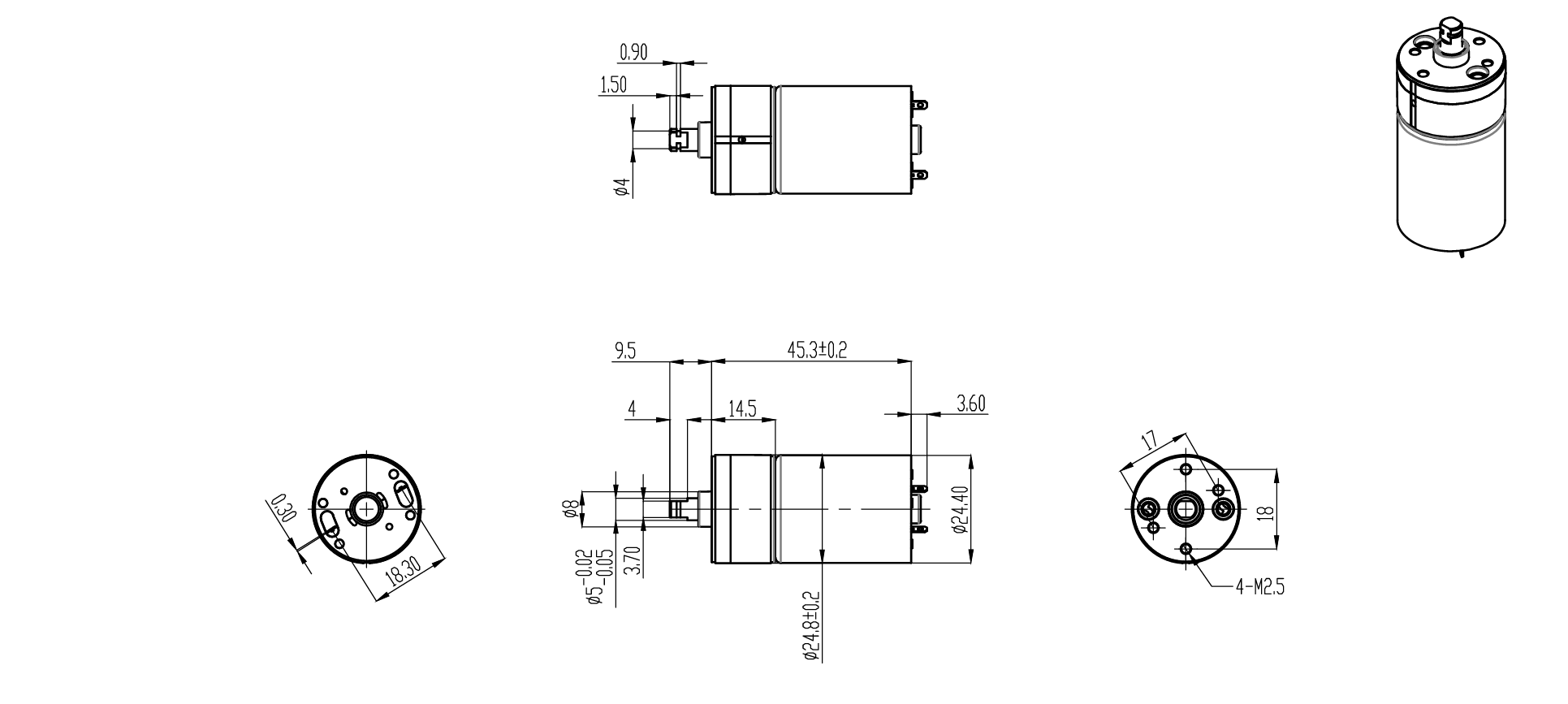

Drawings of 24GR370 Gear Dc MOTOR
Package
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
