Terms of cooperation
| P/N | Application | Capacity | Made in | Brand | Cert | MOQ | Packing | Lead time |
| 248GR370 |
|
80,000-100,000PCS/days | China | YH | CE
ROHS REACH |
10PCS | pallet | 7-12
days |
Specification
| Rated voltage (phase) | 3.7V(DC) |
| No load speed (RPM) | 11000+/-10% |
| No load current(mA) | ≤180 |
| Load speed (RPM) | 550+/-10% |
| Loa current (A) | ≤700 |
| Rated torque (Kgf.cm) | 10 |
| Stall current(A) | ≥8.7 |
| Direction(CW/CCW) | CCW |
| Noise (dB)L=300MM | ≤65 |
| Driving motor Model | 370 |
| Reduction ratio | 1:20 |

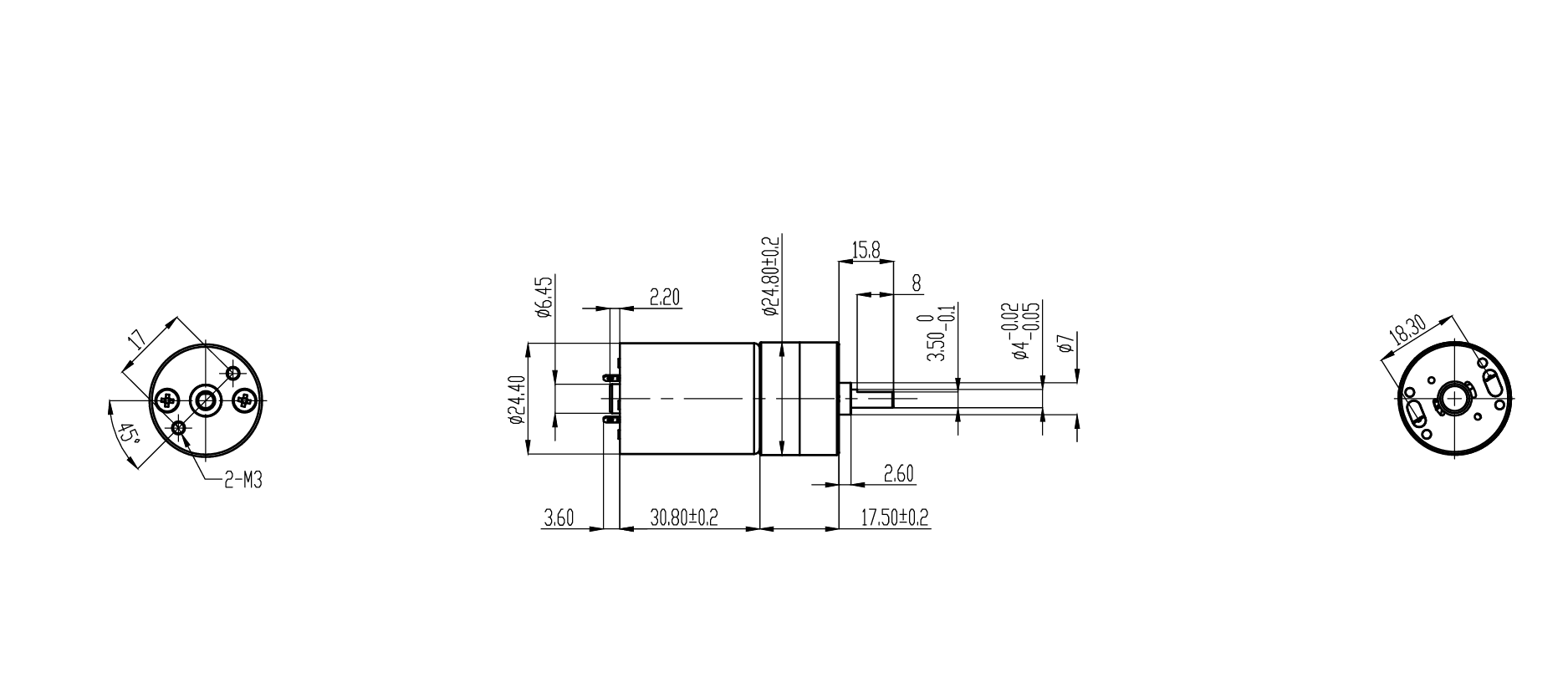

Drawings of 248GR370 Gear Dc MOTOR

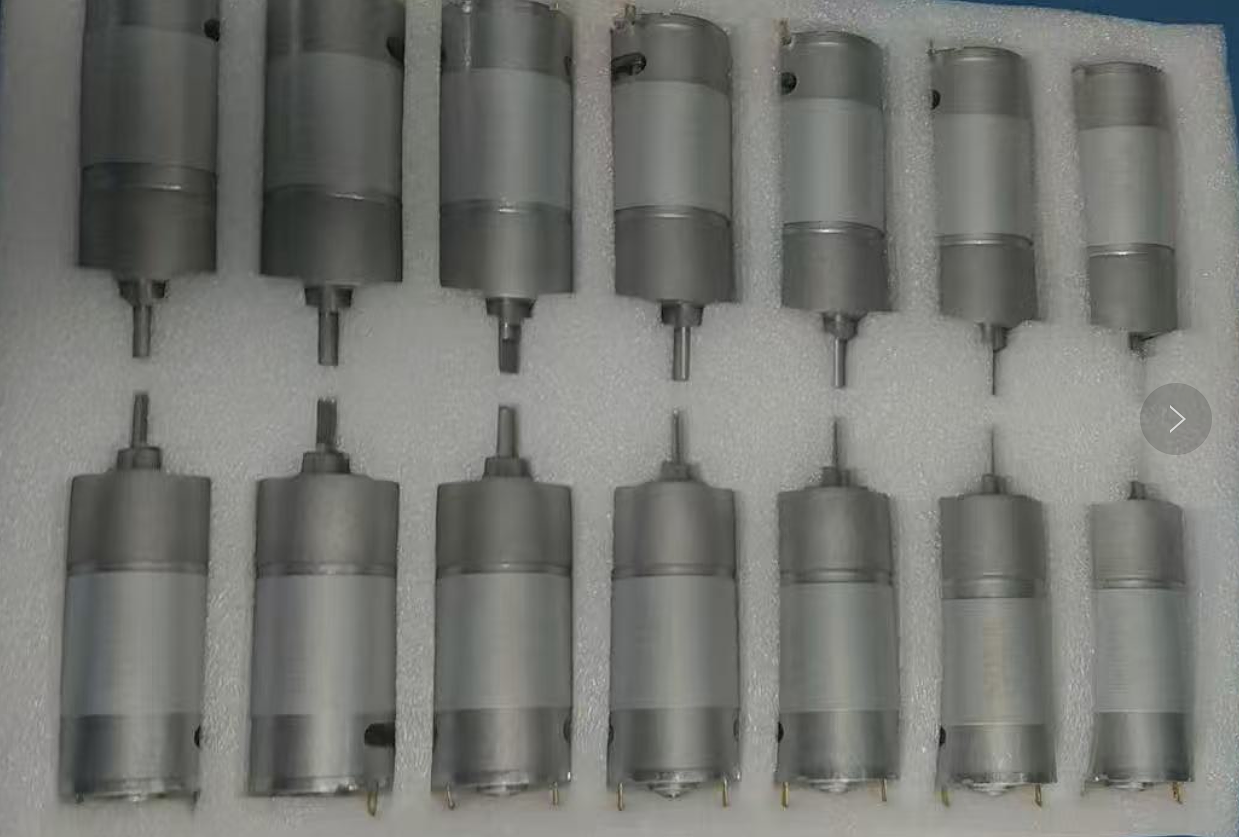

Package
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
