ZYT77S-12012V 24V 2400RPM 4000RPM Permanent Magnet DC Brushed Motor
Date sheet
| Voltage
VDC |
No-load speed
Rpm |
No-load current
Amp |
Sated speed
Rpm |
Sated current
Amp |
Sated Torque
g.cm |
Stall Torque
g.cm |
Stall current
Amp |
| 12 | 3000 | 0.72 | 2400 | 5.76 | 1925 | 9626 | 51.84 |
| 12 | 5000 | 1.35 | 4000 | 10.8 | 2166 | 10830 | 97.2 |
| 24 | 3000 | 0.42 | 2400 | 3.36 | 2246 | 11231 | 30.24 |
| 24 | 5000 | 0.82 | 4000 | 6.14 | 2393 | 20732 | 45.92 |

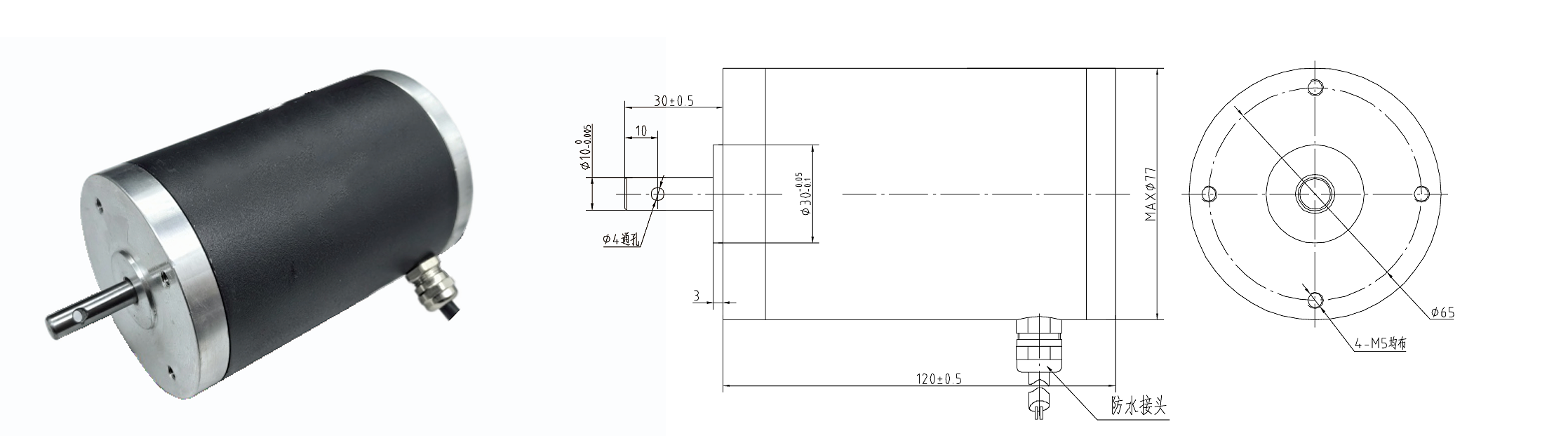

Drawing for ZYT77S-120 Permanent Magnet DC Brushed Motor

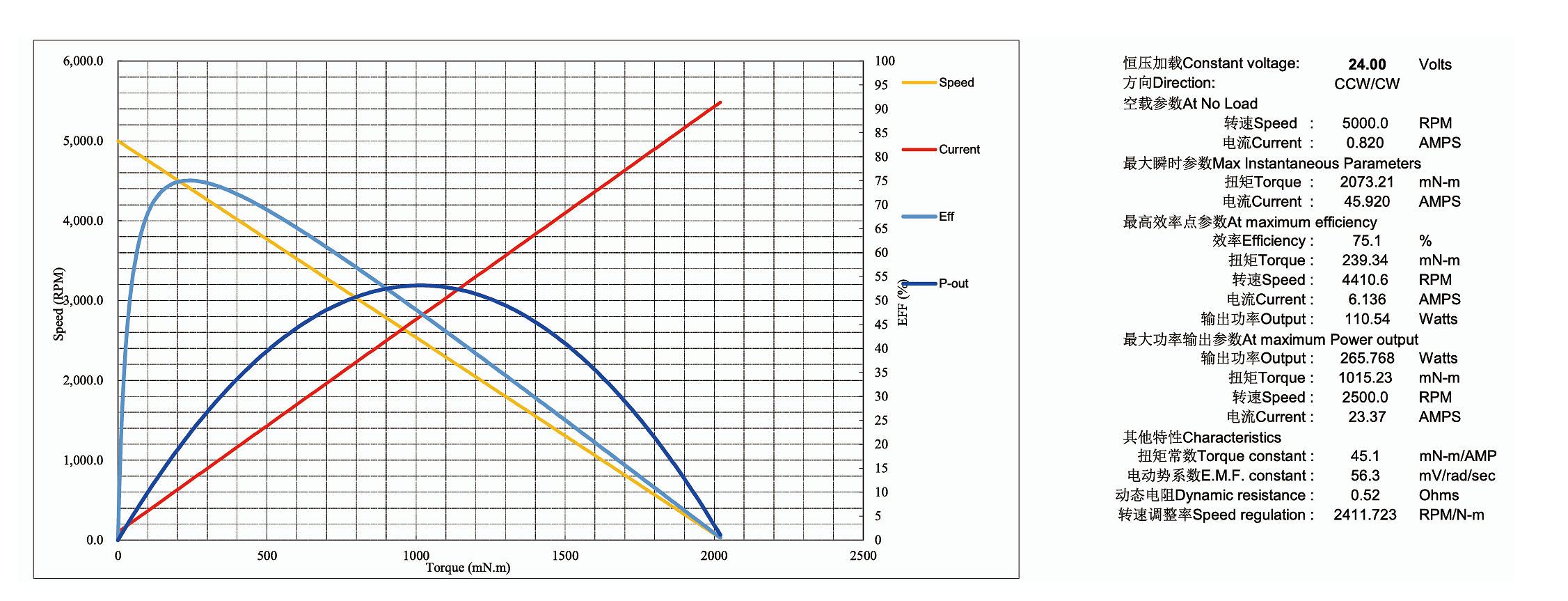

Motor curve
Our company can customize all kinds of non-standard products,if necessary.welcome to consult at any time at sales@ksyh-motor.com .
